4. Esthetics and legibility - 4a)

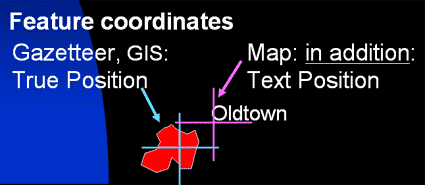

relative location - name (positioning)
|
|
|
Some rules for placing text in maps:

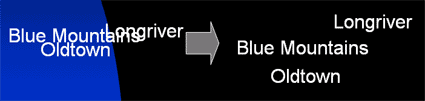

- Names must not overlap each other
- Text should not obscure relevant map information
-

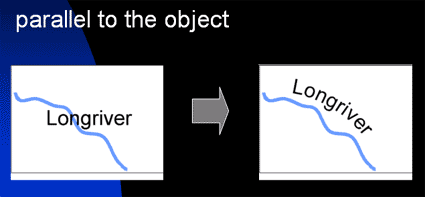

offset (names at linear
elements)
-

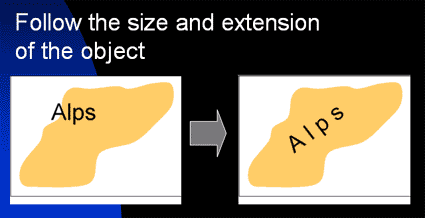

plasticity - level of curvature
-
external factors require
individual decisions
-
visual impact (even distribution)
-
wanted versus unwanted
variability
-

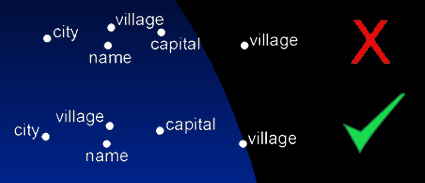

Name placement at point objects

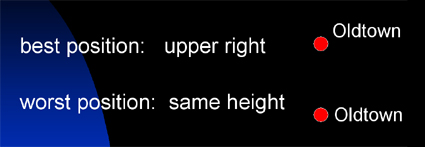

There is a specific order of preference
of the location of the name relative to the named point symbol:
the favourite position is to its upper right (see number 1 in
figure below), the location beneath the symbol is considered
decidedly less effective (#2), and a location of the name on
the same line as the symbol, either to its right or to its left,
is considered anathema.
"position the name so as to optimize
the association between name and object"
|
|
|
|
|
|
|
|
